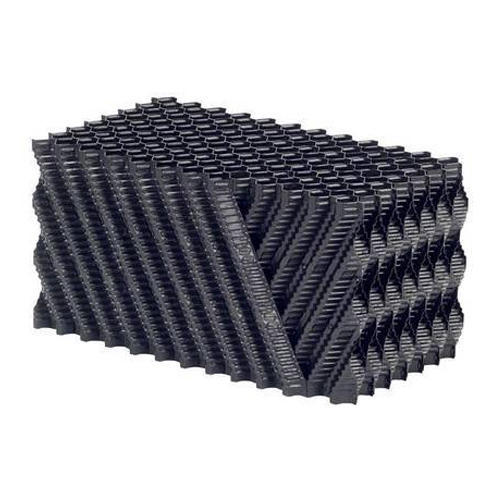

Cooling Tower Fills

Our company is involved in the manufacturing of Cooling Tower Fills, which are an essential component of all Cooling Towers. The fills are used for extended contact area having a high heat transfer efficiency.

Heat Exchange PVC Fill

The Heat Exchange PVC Filloffered by us are designed to meet the specific cooling requirements of most Cooling Towers. The economical and efficient HIP fills have longer functionality and are specially treated to cover maximum area for heat exchange.

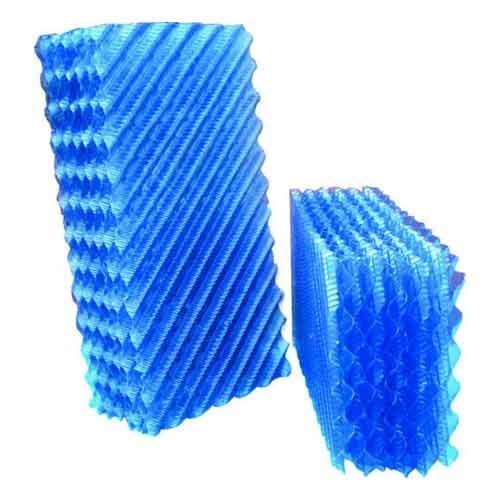

Pvc Fills Standard

Owing to the immense experience and a competent team of experts we are able to offer Pvc Fills Standard

to respectable clients. These PVC Fills offered by us are made utilizing high grade raw material which is sourced from trustworthy vendors of the market. In addition to this, the offered range of PVC Fills is applicable in humidification effluent treatment power petrochemical refining paper chemical steel and allied industries. This PVC Cooling Tower Fills is known for distributing the liquid and gas across the many interconnected channels within the surface material. For inducing highly turbulent mixing between the water and the air, which increases heat and moisture transfer cross fluted designs is introduced.



Features:



  • Fire safe

  • Light weight

  • Decay proof

  • Mass transfer & heat transfer coefficient

  • Low pressure drop

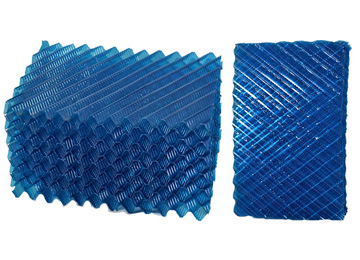

Honey Comb Panels Cooling Tower

We are a trusted name engaged in manufacturing a comprehensive range of Honey Comb Panels Cooling Towerwhich are continuously vacuum formed. These are superior in quality in terms of durability user-friendliness and maintenance. Some essentials features are:

  • These are specially treated to offer maximum contact area for heat exchange.
  • In it, the crossing of air and water streams is in close proximity
  • The proximity creates a diffused turbulence which is conducive to evaporation and efficient heat transfer.

    1) Rigid Poly (PVC)

    2) Honey comb design with double edge folded
    very large contact surface area
    3) Fills Flute height 12mm to 19mm & sheet thick
    0.2 to 0.25 mm
    4) Fill Size : 600mm x 300mm x 150mm
    5) Color : Blue Black White.

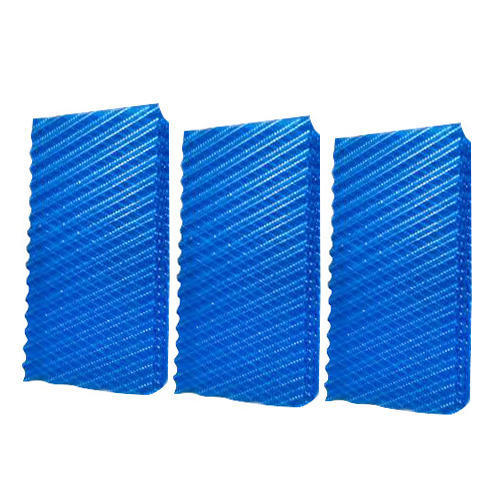

Recycled PVC Fills

Utilizing the most contemporary technology and modern machinery we have come up with an extensive collection of Recycled PVC Fills. These products are specifically designed and developed in adherence with the set industry standards and norms at our innovative production unit. Highly used in domestic as well as industrial sectors, our offered product is quality checked in varied quality parameters under the command of our quality inspectors. We offer them at highly inexpensive rates.


Features:

  • Low maintenance

  • Easy to install

  • Highly durable


Technical Specifications:

Characteristics Units ETIP - 1 ETIP - 2 ETIP - 3 ETIP - 4 ETIP - 5
Cooling TowerApplication Air Washer Counter flow Counter flow Counter flow   Cross flow
Flute Height mm 8 12 19 27 19
Longitudinal pitch mm 25 38 50 75 50
Spiral angle ° (degree) 11/01/79 28 28 28 11/79
Std. Sheet size L x W mm x mm 600 x 300 600 x 300 1200 x 600 600 x 600
Max Recommended Fill Sheet size L x W mm x mm 600 x 600 1800 x 600 1930* x 600* - composite form
Surface area per unit volume M²/m³ ft²/ft³ 375 115 250 76 158 48 120 36 158 48
Maximum continuous Operating temp. °C °F 55 131 55 131 55 131 55 131 55 131

Cooling Tower FRP Fills

With the extensive knowledge and experience in this respective domain we are engaged in offering high quality Cooling Tower FRP Fills that are made by our by us using superior quality raw material.Addition to this range that we offer is stringently inspected before dispatching it to the clients end.

PVC Fills Ball Type

We are the supplier of FRP & FRP Cooling Tower PVC Fills Ball Type. These Cooling Tower PVC Fills are widely used for transferring heat from hot water without an increase in the energy consumption of the fan.

PVC Fills Media

Super plast offers a wide range of edge PVC Fills product to meet your specific applications in all sizes and colour. These fills have been successfully deployed in various industries including humidification effluent treatment power petrochemical refining paper chemical steel and others...

HIP Fill

The HIP Fills offered by us are designed to meet the specific cooling requirements of most Cooling Towers. The economical and efficient HIP Fills have longer functionality and are specially treated to cover maximum area for heat exchange.

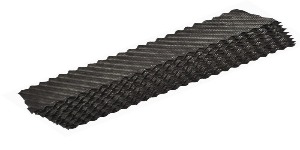

ABS Fills

High temperature fills are made from virgin materials & strength are almost double than any other fills. Generally used for dg set water maximum load 80°c both side folded & work in any location.

Virgin PVC Fills

We are an illustrious manufacturer and supplier of precisely fabricated and designed a quality-assured array of Virgin PVC Fills. Made obtainable in several finishing and sizes these products are designed employing optimum-quality raw material which is been acquired from one of the certified vendors of the market. The complete range is checked for its quality and faultlessness before handing over to the patrons.


Features:

  • Easy to install

  • High efficiency

  • Reliable performance

Double Edge Fold Fills

To gain strong foothold in this industry we are devoted toward offering a wide gamut of Double Edge Fold Fills. Only high quality raw material is used while manufacturing the offered range, for increased compliance with international standards of quality. The offered range is highly appreciated among clients for its excellent and sturdy design. Apart from this, our range is offered in various sizes and can be customized, as per precise needs of our clients at highly competitive prices.

Features:

  • Sturdiness
  • Excellent quality
  • Durability

TRICKLING FILTER MEDIA

Trickling Filter Media are very light in weight, easy to handle and have Long time working capability. Plastic Random Packing materials are tower packing apparatus made of the plastics and polyethylene. They are heat-resistant chemical and corrosion-resistant. We are offering them in lots of beautiful colors. It has a fixed setting for rolling. They are used for public places and entertainment purpose.

Features:

Handles wide range of hydraulic loading rates
Excellent for BOD Reduction
No channels or dead spots
Provides high Bio Surface Area
Random Dumping
Low minimum wetting rate
Longer Media Life
Extremely easy to install

Application:

Increase surface area
Used where waste water is generated

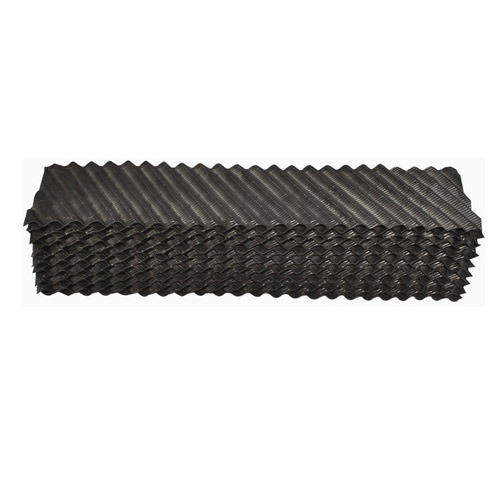

Sigma Type PVC Fill

Over the years of experience in the industry we have been able to provide the customers with a comprehensive assortment of Sigma Type PVC Fill. The offered range is widely used for transferring heat from hot water without increasing the power need of the fans. Our range is widely used in varied industrial sectors such as effluent treatment paper steel petrochemical power steel and other similar areas.



We offer the range in following sizes:


  • 64" x 24" (1600 mm x 600 mm)
  • 72" x 24" (1800 mm x 600 mm)
  • 72" x 36" (1800 mm x 900 mm)



Some of the finest features of the range are:

  • Low pressure drop
  • Fire resistant
  • Decay proof
  • Light weight
  • Higher mass heat transfer coefficient


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

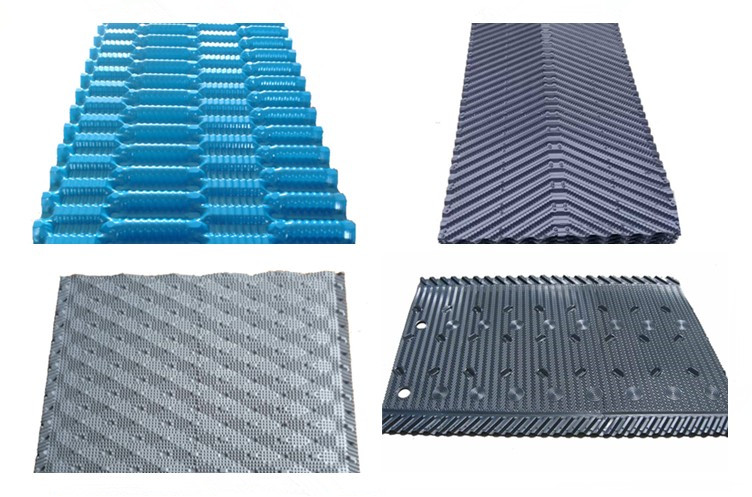

Honeycomb P.V.C. Fills

We are a trusted name engaged in manufacturing a comprehensive range of Honeycomb P.V.C. Fills which are continuously vacuum formed. These are superior in quality in terms of durability user-friendliness and maintenance. Some essentials features are:


  • These are specially treated to offer maximum contact area for heat exchange.
  • In it the crossing of air and water streams is in close proximity
  • The proximity creates a diffused turbulence which is conducive to evaporation and efficient heat transfer.

1) Rigid Poly Vinyl chloride (PVC)


2) Honey comb design with double edge folded
very large contact surface area

3) Fills Flute height 12mm to 19mm & sheet thick
0.2 to 0.25 mm

4) Fill Size : 600mm x 300mm x 150mm

5) Color : Blue Black White.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

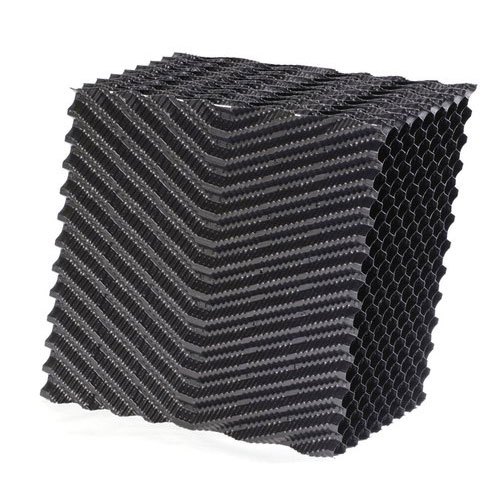

Black Honeycomb PVC Fills

Our qualitative range of Black Honeycomb PVC Fills are continuously vacuum formed. These are long lasting resistant to rugged environment simple and sturdy in construct. Some essentials features are:


  • Specially treated to offer maximum contact area for heat exchange.
  • The crossing of air and water streams is in close proximity
  • The proximity develops a diffused turbulence which is conducive to evaporation and efficient heat transfer.

1) Rigid Poly Vinyl chloride (PVC)


2) Honey comb design with double edge folded
very large contact surface area

3) Fills Flute height 12mm to 19mm & sheet thick
0.2 to 0.25 mm

4) Fill Size : 600mm x 300mm x 150mm

5) Color : Black


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

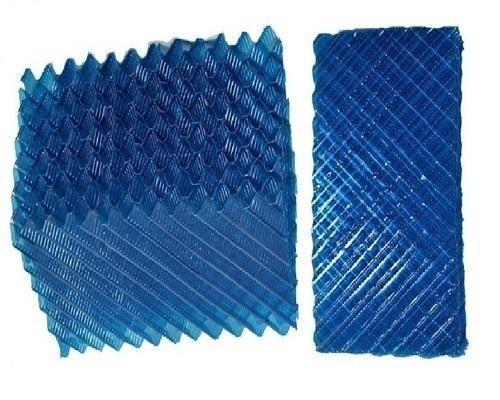

Cooling Tower PVC Fill

We have emerged as the foremost manufacturer, trader, exporter and supplier of Cooling Tower PVC Fill. The offered pad is treated with stiffening and wetting agents to provide the cooling without any water carryover. Our quality controllers stringently check the entire range to ensures its superior performance. Apart from this client can avail this pad from the market at most feasible price.



Features:



  • Lower operating cost

  • Comfortable habitation

  • Higher productivity

  • No water carry- over

  • Strong and self supporting

  • Dirt resistant

  • Low maintenance



Specifications:

Technical details of our PVC fills.

Standard type of PVC fills.

600mmx300mmx150mm

PVC honey combs.

25mm {12. 5 + 12. 5}.

Corrugation pitch.

2. 8 mm.

Corrugation depth

3 mm

Spiral angles.

21

No of PVC sheets per 150 mm width

12

Heat transfer area/cu. Ft. Of fills volume

1 cu. Ft.

Thickness of finished fills.

0. 30 mm

Heat distortion temp. For normal PVC

60 º c

For high grade.

80 º c { up to 120 º c }

Weight of std. Fills.

800 gm to 1 kg.

  • The evaporative cooling pad is cellulose material impregnated with insoluble anti-rot salts and rigidify saturates.

  • The material has spatial crossing linking technology with high absorb ability.

  • It is water resistant, anti-mildew and has a long service life.



Some of the applications of our cooling pads are:



  • Comfort cooling

  • Vegetable storage

  • Mushroom farming

  • Seed farming

  • Dairy farms


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

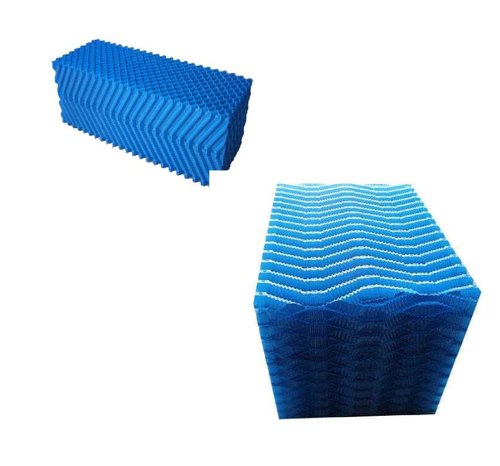

Blue Honeycomb PVC Fills

Our qualitative range of Blue Honeycomb PVC Fills are continuously vacuum formed. These are long lasting resistant to rugged environment simple and sturdy in construct. Some essentials features are:

  • Specially treated to offer maximum contact area for heat exchange.
  • The crossing of air and water streams is in close proximity
  • The proximity develops a diffused turbulence which is conducive to evaporation and efficient heat transfer.

1) Rigid Poly Vinyl chloride (PVC)


2) Honey comb design with double edge folded
very large contact surface area

3) Fills Flute height 12mm to 19mm & sheet thick
0.2 to 0.25 mm

4) Fill Size : 600mm x 300mm x 150mm

5) Color : Blue


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

White Honeycomb PVC Fills

Our qualitative range of White Honeycomb PVC Fillsare continuously vacuum formed. These are long lasting, resistant to rugged environment, simple and sturdy in construct. Some essentials features are:

  • Specially treated to offer maximum contact area for heat exchange.
  • The crossing of air and water streams is in close proximity
  • The proximity develops a diffused turbulence which is conducive to evaporation and efficient heat transfer.

1) Rigid Poly Vinyl chloride (PVC)

2) Honey comb design with double edge folded
very large contact surface area

3) Fills Flute height 12mm to 19mm & sheet thick
0.2 to 0.25 mm

4) Fill Size : 600mm x 300mm x 150mm

5) Color : White


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

PVC Fills

Owing to the immense experience and a competent team of experts, we are able to offer PVC Fills to respectable clients. These PVC fills offered by us are made utilizing high grade raw material which is sourced from trustworthy vendors of the market. In addition to this the offered range of PVC fills is applicable in humidification effluent treatment power petrochemical refining paper chemical, steel and allied industries. This PVC Cooling Tower Fills is known for distributing the liquid and gas across the many interconnected channels within the surface material. For inducing highly turbulent mixing between the water and the air which increases heat and moisture transfer cross fluted designs is introduced.



Features:



  • Light weight

  • Fire safe

  • Decay proof

  • Mass transfer & heat transfer coefficient

  • Low pressure drop


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

PVC Evaporate Cooling Pad

The fill is of rigid ploy vinyl chloride (PVC) and is of Honeycomb design with very large contact surface area. The fill splits the air and water into several streams increasing the time of contact and also heat transfer between water and air.

The fill is in modules and is packed in the air washer & tower casing without any cutting for curves.
The air pressure drop through the fill is negligible. The fills are available with flute height of 6mm 12mm and 19mm with sheet thickness of 1mm and 1.2mm.Size available as per client requirement


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

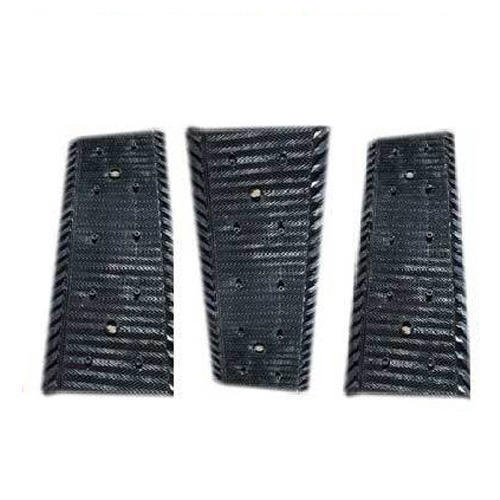

Sigma Cooling Tower Fills

Our company is involved in the manufacturing of sigma fills which are an essential component of all marley paharpur cooling towers. The fills are used for extended contact area having a high heat transfer efficiency.
